Part Number: 6XZNX / Vendor ID #: 776
3.5" Gimbal recessed Dim to Warm
$84.00
Availability
  • Manufacturer has 43 items available.

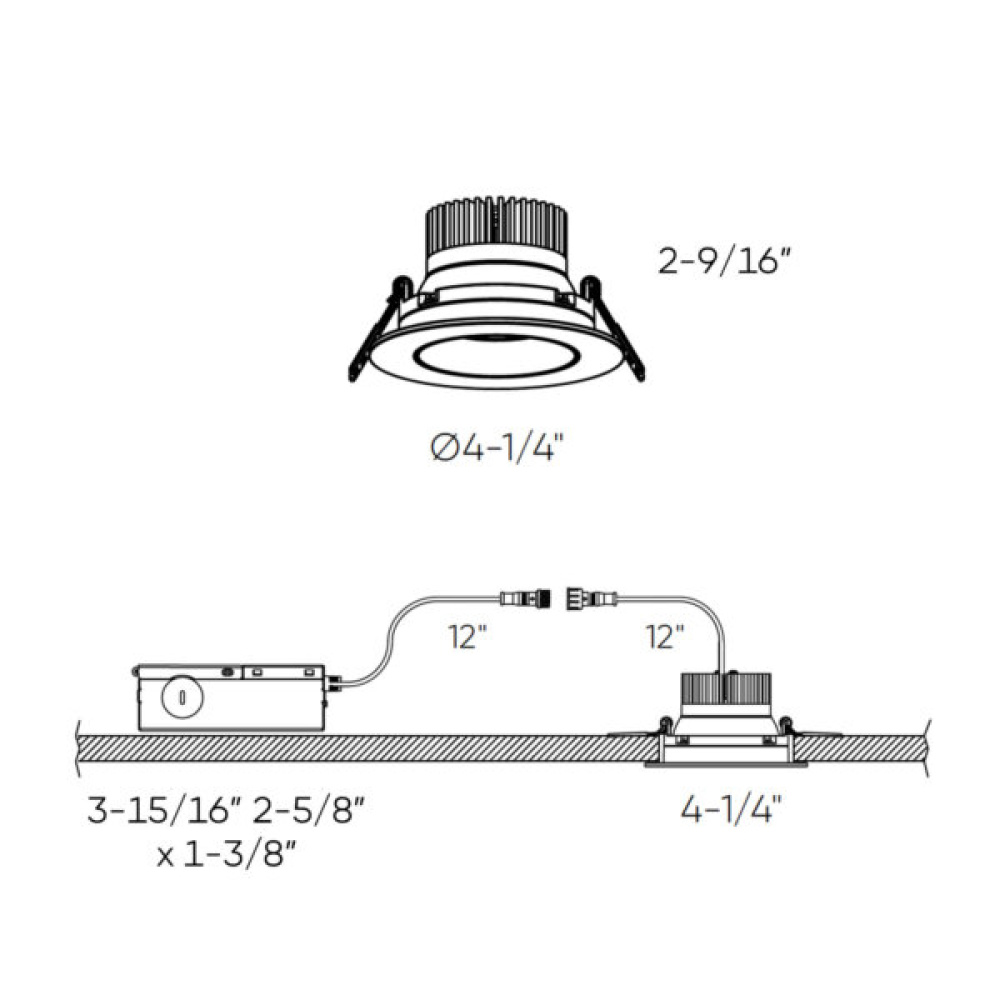

Dimensions
Height: 2.31"
Width: 4.25"
Length: 4.25"
Product Overview
Our Recessed family has grown with a new range of adjustable downlights. The effortless design and high functionality of these fixtures are sure to make a welcome addition in any room.
Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Title 24
Outdoor
Wet Rated
Prop 65
Refinement Options
Category:
Recessed
Subcategory:
Directional
Finish:
White
Family:
Revolve
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2200, 3000
Material:
Aluminum
Ship Carton Height:
4.75
Ship Carton Length:
5.5
Ship Carton Width:
4.75
Ship Weight:
1.5
Warranty:
5 Years Limited
Weight:
1
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
40°
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
825
Dimmer Type:
Triac/ELV
Energy Star:
No
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
JA8:
Yes
Lens Material:
Plastic
Location Rating:
Wet Rated
Max Wattage:
12 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Prop 65:
View
Safety Rating:
ETL Approved
Shipping Master Height:
14.75
Shipping Master Length:
19.3
Shipping Master Quantity:
24
Shipping Master Weight:
35
Shipping Master Width:
11.6
Title 24:
Yes
Wiring:
Hardwired
30° tilting, 360° rotation
40° beam angle
IC certification (suitable for direct contact with insulation)
Suitable for wet locations
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K in canopy
